距離変換とWatershedアルゴリズムによる画像セグメンテーション

目次

• 目的
• 理論
• コード
• 説明 / 結果

前のチュートリアル: 点と多角形の内外判定
次のチュートリアル: ピンボケ画像の復元フィルタ

原著者	Theodore Tsesmelis
互換性	OpenCV >= 3.0

目的

このチュートリアルでは、以下の方法を学ぶ:

• 画像のシャープニングのためにラプラシアンフィルタリングを行う目的で、OpenCV関数 cv::filter2D を使用する
• 二値画像の派生表現を得る目的で、OpenCV関数 cv::distanceTransform を使用する。この表現では、各ピクセルの値は最も近い背景ピクセルまでの距離に置き換えられる
• 画像中のオブジェクトを背景から分離する目的で、OpenCV関数 cv::watershed を使用する

理論

コード

C++

このチュートリアルのコードを以下の行に示す。こちらからダウンロードすることもできる。


#include <opencv2/core.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
#include <iostream>

using namespace std;
using namespace cv;

int main(int argc, char *argv[])
{
 // Load the image
 CommandLineParser parser( argc, argv, "{@input | cards.png | input image}" );
 Mat src = imread( samples::findFile( parser.get<String>( "@input" ) ) );
 if( src.empty() )
    {
        cout << "Could not open or find the image!\n" << endl;
        cout << "Usage: " << argv[0] << " <Input image>" << endl;
 return -1;
    }

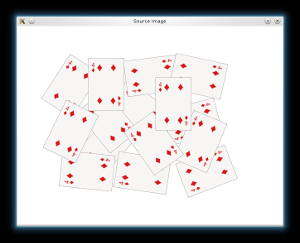

 // Show the source image
    imshow("Source Image", src);

 // Change the background from white to black, since that will help later to extract
 // better results during the use of Distance Transform
 Mat mask;
    inRange(src, Scalar(255, 255, 255), Scalar(255, 255, 255), mask);
    src.setTo(Scalar(0, 0, 0), mask);

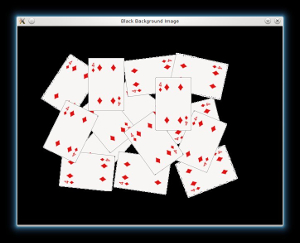

 // Show output image
    imshow("Black Background Image", src);

 // Create a kernel that we will use to sharpen our image
 Mat kernel = (Mat_<float>(3,3) <<
                  1,  1, 1,
                  1, -8, 1,
                  1,  1, 1); // an approximation of second derivative, a quite strong kernel

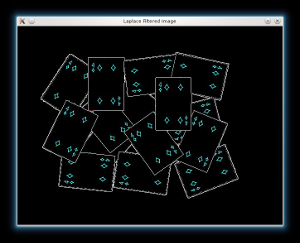

 // do the laplacian filtering as it is
 // well, we need to convert everything in something more deeper then CV_8U
 // because the kernel has some negative values,
 // and we can expect in general to have a Laplacian image with negative values
 // BUT a 8bits unsigned int (the one we are working with) can contain values from 0 to 255
 // so the possible negative number will be truncated
 Mat imgLaplacian;
    filter2D(src, imgLaplacian, CV_32F, kernel);
 Mat sharp;
    src.convertTo(sharp, CV_32F);
 Mat imgResult = sharp - imgLaplacian;

 // convert back to 8bits gray scale
    imgResult.convertTo(imgResult, CV_8UC3);
    imgLaplacian.convertTo(imgLaplacian, CV_8UC3);

 // imshow( "Laplace Filtered Image", imgLaplacian );
    imshow( "New Sharped Image", imgResult );

 // Create binary image from source image
 Mat bw;
    cvtColor(imgResult, bw, COLOR_BGR2GRAY);
    threshold(bw, bw, 40, 255, THRESH_BINARY | THRESH_OTSU);
    imshow("Binary Image", bw);

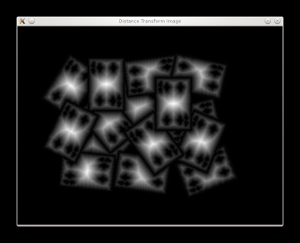

 // Perform the distance transform algorithm
 Mat dist;
    distanceTransform(bw, dist, DIST_L2, 3);

 // Normalize the distance image for range = {0.0, 1.0}
 // so we can visualize and threshold it
    normalize(dist, dist, 0, 1.0, NORM_MINMAX);
    imshow("Distance Transform Image", dist);

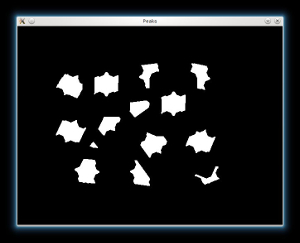

 // Threshold to obtain the peaks
 // This will be the markers for the foreground objects
    threshold(dist, dist, 0.4, 1.0, THRESH_BINARY);

 // Dilate a bit the dist image
 Mat kernel1 = Mat::ones(3, 3, CV_8U);
    dilate(dist, dist, kernel1);
    imshow("Peaks", dist);

 // Create the CV_8U version of the distance image
 // It is needed for findContours()
 Mat dist_8u;
    dist.convertTo(dist_8u, CV_8U);

 // Find total markers
    vector<vector<Point> > contours;
    findContours(dist_8u, contours, RETR_EXTERNAL, CHAIN_APPROX_SIMPLE);

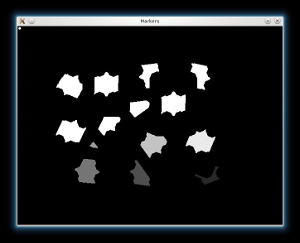

 // Create the marker image for the watershed algorithm
 Mat markers = Mat::zeros(dist.size(), CV_32S);

 // Draw the foreground markers
 for (size_t i = 0; i < contours.size(); i++)
    {
        drawContours(markers, contours, static_cast<int>(i), Scalar(static_cast<int>(i)+1), -1);
    }

 // Draw the background marker
    circle(markers, Point(5,5), 3, Scalar(255), -1);
 Mat markers8u;
    markers.convertTo(markers8u, CV_8U, 10);
    imshow("Markers", markers8u);

 // Perform the watershed algorithm
    watershed(imgResult, markers);

 Mat mark;
    markers.convertTo(mark, CV_8U);
    bitwise_not(mark, mark);
 //    imshow("Markers_v2", mark); // uncomment this if you want to see how the mark
 // image looks like at that point

 // Generate random colors
    vector<Vec3b> colors;
 for (size_t i = 0; i < contours.size(); i++)
    {
 int b = theRNG().uniform(0, 256);
 int g = theRNG().uniform(0, 256);
 int r = theRNG().uniform(0, 256);

        colors.push_back(Vec3b((uchar)b, (uchar)g, (uchar)r));
    }

 // Create the result image
 Mat dst = Mat::zeros(markers.size(), CV_8UC3);

 // Fill labeled objects with random colors
 for (int i = 0; i < markers.rows; i++)
    {
 for (int j = 0; j < markers.cols; j++)
        {
 int index = markers.at<int>(i,j);
 if (index > 0 && index <= static_cast<int>(contours.size()))
            {
                dst.at<Vec3b>(i,j) = colors[index-1];
            }
        }
    }

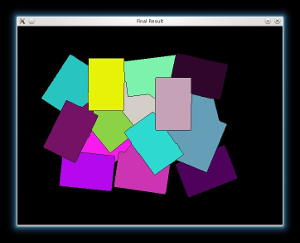

 // Visualize the final image
 imshow("Final Result", dst);

 waitKey();
 return 0;
}

Java

このチュートリアルのコードを以下の行に示す。こちらからダウンロードすることもできる

import java.util.ArrayList;
import java.util.List;
import java.util.Random;

import org.opencv.core.Core;
import org.opencv.core.CvType;
import org.opencv.core.Mat;
import org.opencv.core.MatOfPoint;
import org.opencv.core.Point;
import org.opencv.core.Scalar;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

class ImageSegmentation {
 public void run(String[] args) {
 // Load the image
        String filename = args.length > 0 ? args[0] : "../data/cards.png";
        Mat srcOriginal = Imgcodecs.imread(filename);
 if (srcOriginal.empty()) {
            System.err.println("Cannot read image: " + filename);
            System.exit(0);
        }

 // Show source image
        HighGui.imshow("Source Image", srcOriginal);

 // Change the background from white to black, since that will help later to
 // extract
 // better results during the use of Distance Transform
        Mat src = srcOriginal.clone();
 byte[] srcData = new byte[(int) (src.total() * src.channels())];
        src.get(0, 0, srcData);
 for (int i = 0; i < src.rows(); i++) {
 for (int j = 0; j < src.cols(); j++) {
 if (srcData[(i * src.cols() + j) * 3] == (byte) 255 && srcData[(i * src.cols() + j) * 3 + 1] == (byte) 255
                        && srcData[(i * src.cols() + j) * 3 + 2] == (byte) 255) {
                    srcData[(i * src.cols() + j) * 3] = 0;
                    srcData[(i * src.cols() + j) * 3 + 1] = 0;
                    srcData[(i * src.cols() + j) * 3 + 2] = 0;
                }
            }
        }
        src.put(0, 0, srcData);

 // Show output image
        HighGui.imshow("Black Background Image", src);

 // Create a kernel that we will use to sharpen our image
        Mat kernel = new Mat(3, 3, CvType.CV_32F);
 // an approximation of second derivative, a quite strong kernel
 float[] kernelData = new float[(int) (kernel.total() * kernel.channels())];
        kernelData[0] = 1; kernelData[1] = 1; kernelData[2] = 1;
        kernelData[3] = 1; kernelData[4] = -8; kernelData[5] = 1;
        kernelData[6] = 1; kernelData[7] = 1; kernelData[8] = 1;
        kernel.put(0, 0, kernelData);

 // do the laplacian filtering as it is
 // well, we need to convert everything in something more deeper then CV_8U
 // because the kernel has some negative values,
 // and we can expect in general to have a Laplacian image with negative values
 // BUT a 8bits unsigned int (the one we are working with) can contain values
 // from 0 to 255
 // so the possible negative number will be truncated
        Mat imgLaplacian = new Mat();
        Imgproc.filter2D(src, imgLaplacian, CvType.CV_32F, kernel);
        Mat sharp = new Mat();
        src.convertTo(sharp, CvType.CV_32F);
        Mat imgResult = new Mat();
        Core.subtract(sharp, imgLaplacian, imgResult);

 // convert back to 8bits gray scale
        imgResult.convertTo(imgResult, CvType.CV_8UC3);
        imgLaplacian.convertTo(imgLaplacian, CvType.CV_8UC3);

 // imshow( "Laplace Filtered Image", imgLaplacian );
        HighGui.imshow("New Sharped Image", imgResult);

 // Create binary image from source image
        Mat bw = new Mat();
        Imgproc.cvtColor(imgResult, bw, Imgproc.COLOR_BGR2GRAY);
        Imgproc.threshold(bw, bw, 40, 255, Imgproc.THRESH_BINARY | Imgproc.THRESH_OTSU);
        HighGui.imshow("Binary Image", bw);

 // Perform the distance transform algorithm
        Mat dist = new Mat();
        Imgproc.distanceTransform(bw, dist, Imgproc.DIST_L2, 3);

 // Normalize the distance image for range = {0.0, 1.0}
 // so we can visualize and threshold it
        Core.normalize(dist, dist, 0.0, 1.0, Core.NORM_MINMAX);
        Mat distDisplayScaled = new Mat();
        Core.multiply(dist, new Scalar(255), distDisplayScaled);
        Mat distDisplay = new Mat();
        distDisplayScaled.convertTo(distDisplay, CvType.CV_8U);
        HighGui.imshow("Distance Transform Image", distDisplay);

 // Threshold to obtain the peaks
 // This will be the markers for the foreground objects
        Imgproc.threshold(dist, dist, 0.4, 1.0, Imgproc.THRESH_BINARY);

 // Dilate a bit the dist image
        Mat kernel1 = Mat.ones(3, 3, CvType.CV_8U);
        Imgproc.dilate(dist, dist, kernel1);
        Mat distDisplay2 = new Mat();
        dist.convertTo(distDisplay2, CvType.CV_8U);
        Core.multiply(distDisplay2, new Scalar(255), distDisplay2);
        HighGui.imshow("Peaks", distDisplay2);

 // Create the CV_8U version of the distance image
 // It is needed for findContours()
        Mat dist_8u = new Mat();
        dist.convertTo(dist_8u, CvType.CV_8U);

 // Find total markers
        List<MatOfPoint> contours = new ArrayList<>();
        Mat hierarchy = new Mat();
        Imgproc.findContours(dist_8u, contours, hierarchy, Imgproc.RETR_EXTERNAL, Imgproc.CHAIN_APPROX_SIMPLE);

 // Create the marker image for the watershed algorithm
        Mat markers = Mat.zeros(dist.size(), CvType.CV_32S);

 // Draw the foreground markers
 for (int i = 0; i < contours.size(); i++) {
            Imgproc.drawContours(markers, contours, i, new Scalar(i + 1), -1);
        }

 // Draw the background marker
        Mat markersScaled = new Mat();
        markers.convertTo(markersScaled, CvType.CV_32F);
        Core.normalize(markersScaled, markersScaled, 0.0, 255.0, Core.NORM_MINMAX);
        Imgproc.circle(markersScaled, new Point(5, 5), 3, new Scalar(255, 255, 255), -1);
        Mat markersDisplay = new Mat();
        markersScaled.convertTo(markersDisplay, CvType.CV_8U);
        HighGui.imshow("Markers", markersDisplay);
        Imgproc.circle(markers, new Point(5, 5), 3, new Scalar(255, 255, 255), -1);

 // Perform the watershed algorithm
        Imgproc.watershed(imgResult, markers);

        Mat mark = Mat.zeros(markers.size(), CvType.CV_8U);
        markers.convertTo(mark, CvType.CV_8UC1);
        Core.bitwise_not(mark, mark);
 // imshow("Markers_v2", mark); // uncomment this if you want to see how the mark
 // image looks like at that point

 // Generate random colors
        Random rng = new Random(12345);
        List<Scalar> colors = new ArrayList<>(contours.size());
 for (int i = 0; i < contours.size(); i++) {
 int b = rng.nextInt(256);
 int g = rng.nextInt(256);
 int r = rng.nextInt(256);

            colors.add(new Scalar(b, g, r));
        }

 // Create the result image
        Mat dst = Mat.zeros(markers.size(), CvType.CV_8UC3);
 byte[] dstData = new byte[(int) (dst.total() * dst.channels())];
        dst.get(0, 0, dstData);

 // Fill labeled objects with random colors
 int[] markersData = new int[(int) (markers.total() * markers.channels())];
        markers.get(0, 0, markersData);
 for (int i = 0; i < markers.rows(); i++) {
 for (int j = 0; j < markers.cols(); j++) {
 int index = markersData[i * markers.cols() + j];
 if (index > 0 && index <= contours.size()) {
                    dstData[(i * dst.cols() + j) * 3 + 0] = (byte) colors.get(index - 1).val[0];
                    dstData[(i * dst.cols() + j) * 3 + 1] = (byte) colors.get(index - 1).val[1];
                    dstData[(i * dst.cols() + j) * 3 + 2] = (byte) colors.get(index - 1).val[2];
                } else {
                    dstData[(i * dst.cols() + j) * 3 + 0] = 0;
                    dstData[(i * dst.cols() + j) * 3 + 1] = 0;
                    dstData[(i * dst.cols() + j) * 3 + 2] = 0;
                }
            }
        }
        dst.put(0, 0, dstData);

 // Visualize the final image
        HighGui.imshow("Final Result", dst);

        HighGui.waitKey();
        System.exit(0);
    }
}

public class ImageSegmentationDemo {
 public static void main(String[] args) {
 // Load the native OpenCV library
        System.loadLibrary(Core.NATIVE_LIBRARY_NAME);

 new ImageSegmentation().run(args);
    }
}

Python

このチュートリアルのコードを以下の行に示す。こちらからダウンロードすることもできる

from __future__ import print_function
import cv2 as cv
import numpy as np
import argparse
import random as rng

rng.seed(12345)


parser = argparse.ArgumentParser(description='Code for Image Segmentation with Distance Transform and Watershed Algorithm.\
    Sample code showing how to segment overlapping objects using Laplacian filtering, \
    in addition to Watershed and Distance Transformation')
parser.add_argument('--input', help='Path to input image.', default='cards.png')
args = parser.parse_args()

src = cv.imread(cv.samples.findFile(args.input))
if src is None:
    print('Could not open or find the image:', args.input)
    exit(0)

# Show source image
cv.imshow('Source Image', src)



src[np.all(src == 255, axis=2)] = 0

# Show output image
cv.imshow('Black Background Image', src)



kernel = np.array([[1, 1, 1], [1, -8, 1], [1, 1, 1]], dtype=np.float32)

# do the laplacian filtering as it is
# well, we need to convert everything in something more deeper then CV_8U
# because the kernel has some negative values,
# and we can expect in general to have a Laplacian image with negative values
# BUT a 8bits unsigned int (the one we are working with) can contain values from 0 to 255
# so the possible negative number will be truncated
imgLaplacian = cv.filter2D(src, cv.CV_32F, kernel)
sharp = np.float32(src)
imgResult = sharp - imgLaplacian

# convert back to 8bits gray scale
imgResult = np.clip(imgResult, 0, 255)
imgResult = imgResult.astype('uint8')
imgLaplacian = np.clip(imgLaplacian, 0, 255)
imgLaplacian = np.uint8(imgLaplacian)

#cv.imshow('Laplace Filtered Image', imgLaplacian)
cv.imshow('New Sharped Image', imgResult)



bw = cv.cvtColor(imgResult, cv.COLOR_BGR2GRAY)
_, bw = cv.threshold(bw, 40, 255, cv.THRESH_BINARY | cv.THRESH_OTSU)
cv.imshow('Binary Image', bw)



dist = cv.distanceTransform(bw, cv.DIST_L2, 3)

# Normalize the distance image for range = {0.0, 1.0}
# so we can visualize and threshold it
cv.normalize(dist, dist, 0, 1.0, cv.NORM_MINMAX)
cv.imshow('Distance Transform Image', dist)



_, dist = cv.threshold(dist, 0.4, 1.0, cv.THRESH_BINARY)

# Dilate a bit the dist image
kernel1 = np.ones((3,3), dtype=np.uint8)
dist = cv.dilate(dist, kernel1)
cv.imshow('Peaks', dist)



dist_8u = dist.astype('uint8')

# Find total markers
contours, _ = cv.findContours(dist_8u, cv.RETR_EXTERNAL, cv.CHAIN_APPROX_SIMPLE)

# Create the marker image for the watershed algorithm
markers = np.zeros(dist.shape, dtype=np.int32)

# Draw the foreground markers
for i in range(len(contours)):
 cv.drawContours(markers, contours, i, (i+1), -1)

# Draw the background marker
cv.circle(markers, (5,5), 3, (255,255,255), -1)
markers_8u = (markers * 10).astype('uint8')
cv.imshow('Markers', markers_8u)



cv.watershed(imgResult, markers)

#mark = np.zeros(markers.shape, dtype=np.uint8)
mark = markers.astype('uint8')
mark = cv.bitwise_not(mark)
# uncomment this if you want to see how the mark
# image looks like at that point
#cv.imshow('Markers_v2', mark)

# Generate random colors
colors = []
for contour in contours:
    colors.append((rng.randint(0,256), rng.randint(0,256), rng.randint(0,256)))

# Create the result image
dst = np.zeros((markers.shape[0], markers.shape[1], 3), dtype=np.uint8)

# Fill labeled objects with random colors
for i in range(markers.shape[0]):
 for j in range(markers.shape[1]):
        index = markers[i,j]
 if index > 0 and index <= len(contours):
            dst[i,j,:] = colors[index-1]

# Visualize the final image
cv.imshow('Final Result', dst)


cv.waitKey()

説明 / 結果

• 元画像を読み込み、問題なく読み込めたかを確認してから表示する:

C++

 // Load the image
 CommandLineParser parser( argc, argv, "{@input | cards.png | input image}" );
 Mat src = imread( samples::findFile( parser.get<String>( "@input" ) ) );
 if( src.empty() )
    {
        cout << "Could not open or find the image!\n" << endl;
        cout << "Usage: " << argv[0] << " <Input image>" << endl;
 return -1;
    }

 // Show the source image
 imshow("Source Image", src);

Java

 // Load the image
 String filename = args.length > 0 ? args[0] : "../data/cards.png";
        Mat srcOriginal = Imgcodecs.imread(filename);
 if (srcOriginal.empty()) {
            System.err.println("Cannot read image: " + filename);
            System.exit(0);
        }

 // Show source image
        HighGui.imshow("Source Image", srcOriginal);

Python

parser = argparse.ArgumentParser(description='Code for Image Segmentation with Distance Transform and Watershed Algorithm.\
    Sample code showing how to segment overlapping objects using Laplacian filtering, \
    in addition to Watershed and Distance Transformation')
parser.add_argument('--input', help='Path to input image.', default='cards.png')
args = parser.parse_args()

src = cv.imread(cv.samples.findFile(args.input))
if src is None:
    print('Could not open or find the image:', args.input)
    exit(0)

# Show source image
cv.imshow('Source Image', src)

• 次に、白い背景の画像がある場合は、それを黒に変換しておくとよい。これにより、後でDistance Transformを適用する際に前景オブジェクトをより容易に判別できるようになる:

C++

 // Change the background from white to black, since that will help later to extract
 // better results during the use of Distance Transform
 Mat mask;
 inRange(src, Scalar(255, 255, 255), Scalar(255, 255, 255), mask);
    src.setTo(Scalar(0, 0, 0), mask);

 // Show output image
 imshow("Black Background Image", src);

Java

 // Change the background from white to black, since that will help later to
 // extract
 // better results during the use of Distance Transform
        Mat src = srcOriginal.clone();
 byte[] srcData = new byte[(int) (src.total() * src.channels())];
        src.get(0, 0, srcData);
 for (int i = 0; i < src.rows(); i++) {
 for (int j = 0; j < src.cols(); j++) {
 if (srcData[(i * src.cols() + j) * 3] == (byte) 255 && srcData[(i * src.cols() + j) * 3 + 1] == (byte) 255
                        && srcData[(i * src.cols() + j) * 3 + 2] == (byte) 255) {
                    srcData[(i * src.cols() + j) * 3] = 0;
                    srcData[(i * src.cols() + j) * 3 + 1] = 0;
                    srcData[(i * src.cols() + j) * 3 + 2] = 0;
                }
            }
        }
        src.put(0, 0, srcData);

 // Show output image
        HighGui.imshow("Black Background Image", src);

Python

src[np.all(src == 255, axis=2)] = 0

# Show output image
cv.imshow('Black Background Image', src)

• その後、前景オブジェクトのエッジを際立たせるために画像をシャープにする。かなり強いフィルタ(二次微分の近似)を用いてラプラシアンフィルタを適用する:

C++

 // Create a kernel that we will use to sharpen our image
 Mat kernel = (Mat_<float>(3,3) <<
                  1,  1, 1,
                  1, -8, 1,
                  1,  1, 1); // an approximation of second derivative, a quite strong kernel

 // do the laplacian filtering as it is
 // well, we need to convert everything in something more deeper then CV_8U
 // because the kernel has some negative values,
 // and we can expect in general to have a Laplacian image with negative values
 // BUT a 8bits unsigned int (the one we are working with) can contain values from 0 to 255
 // so the possible negative number will be truncated
 Mat imgLaplacian;
 filter2D(src, imgLaplacian, CV_32F, kernel);
 Mat sharp;
    src.convertTo(sharp, CV_32F);
 Mat imgResult = sharp - imgLaplacian;

 // convert back to 8bits gray scale
    imgResult.convertTo(imgResult, CV_8UC3);
    imgLaplacian.convertTo(imgLaplacian, CV_8UC3);

 // imshow( "Laplace Filtered Image", imgLaplacian );
 imshow( "New Sharped Image", imgResult );

Java

 // Create a kernel that we will use to sharpen our image
        Mat kernel = new Mat(3, 3, CvType.CV_32F);
 // an approximation of second derivative, a quite strong kernel
 float[] kernelData = new float[(int) (kernel.total() * kernel.channels())];
        kernelData[0] = 1; kernelData[1] = 1; kernelData[2] = 1;
        kernelData[3] = 1; kernelData[4] = -8; kernelData[5] = 1;
        kernelData[6] = 1; kernelData[7] = 1; kernelData[8] = 1;
        kernel.put(0, 0, kernelData);

 // do the laplacian filtering as it is
 // well, we need to convert everything in something more deeper then CV_8U
 // because the kernel has some negative values,
 // and we can expect in general to have a Laplacian image with negative values
 // BUT a 8bits unsigned int (the one we are working with) can contain values
 // from 0 to 255
 // so the possible negative number will be truncated
        Mat imgLaplacian = new Mat();
        Imgproc.filter2D(src, imgLaplacian, CvType.CV_32F, kernel);
        Mat sharp = new Mat();
        src.convertTo(sharp, CvType.CV_32F);
        Mat imgResult = new Mat();
        Core.subtract(sharp, imgLaplacian, imgResult);

 // convert back to 8bits gray scale
        imgResult.convertTo(imgResult, CvType.CV_8UC3);
        imgLaplacian.convertTo(imgLaplacian, CvType.CV_8UC3);

 // imshow( "Laplace Filtered Image", imgLaplacian );
        HighGui.imshow("New Sharped Image", imgResult);

Python

kernel = np.array([[1, 1, 1], [1, -8, 1], [1, 1, 1]], dtype=np.float32)

# do the laplacian filtering as it is
# well, we need to convert everything in something more deeper then CV_8U
# because the kernel has some negative values,
# and we can expect in general to have a Laplacian image with negative values
# BUT a 8bits unsigned int (the one we are working with) can contain values from 0 to 255
# so the possible negative number will be truncated
imgLaplacian = cv.filter2D(src, cv.CV_32F, kernel)
sharp = np.float32(src)
imgResult = sharp - imgLaplacian

# convert back to 8bits gray scale
imgResult = np.clip(imgResult, 0, 255)
imgResult = imgResult.astype('uint8')
imgLaplacian = np.clip(imgLaplacian, 0, 255)
imgLaplacian = np.uint8(imgLaplacian)

#cv.imshow('Laplace Filtered Image', imgLaplacian)
cv.imshow('New Sharped Image', imgResult)

• 次に、新しくシャープにした元画像を、それぞれグレースケールと二値に変換する:

C++

 // Create binary image from source image
 Mat bw;
 cvtColor(imgResult, bw, COLOR_BGR2GRAY);
 threshold(bw, bw, 40, 255, THRESH_BINARY | THRESH_OTSU);
 imshow("Binary Image", bw);

Java

 // Create binary image from source image
        Mat bw = new Mat();
        Imgproc.cvtColor(imgResult, bw, Imgproc.COLOR_BGR2GRAY);
        Imgproc.threshold(bw, bw, 40, 255, Imgproc.THRESH_BINARY | Imgproc.THRESH_OTSU);
        HighGui.imshow("Binary Image", bw);

Python

bw = cv.cvtColor(imgResult, cv.COLOR_BGR2GRAY)
_, bw = cv.threshold(bw, 40, 255, cv.THRESH_BINARY | cv.THRESH_OTSU)
cv.imshow('Binary Image', bw)

• これで二値画像にDistance Transformを適用する準備が整った。さらに、結果を可視化したりしきい値処理したりできるよう、出力画像を正規化する:

C++

 // Perform the distance transform algorithm
 Mat dist;
 distanceTransform(bw, dist, DIST_L2, 3);

 // Normalize the distance image for range = {0.0, 1.0}
 // so we can visualize and threshold it
 normalize(dist, dist, 0, 1.0, NORM_MINMAX);
 imshow("Distance Transform Image", dist);

Java

 // Perform the distance transform algorithm
        Mat dist = new Mat();
        Imgproc.distanceTransform(bw, dist, Imgproc.DIST_L2, 3);

 // Normalize the distance image for range = {0.0, 1.0}
 // so we can visualize and threshold it
        Core.normalize(dist, dist, 0.0, 1.0, Core.NORM_MINMAX);
        Mat distDisplayScaled = new Mat();
        Core.multiply(dist, new Scalar(255), distDisplayScaled);
        Mat distDisplay = new Mat();
        distDisplayScaled.convertTo(distDisplay, CvType.CV_8U);
        HighGui.imshow("Distance Transform Image", distDisplay);

Python

dist = cv.distanceTransform(bw, cv.DIST_L2, 3)

# Normalize the distance image for range = {0.0, 1.0}
# so we can visualize and threshold it
cv.normalize(dist, dist, 0, 1.0, cv.NORM_MINMAX)
cv.imshow('Distance Transform Image', dist)

• dist 画像をしきい値処理し、その後、上記の画像からピークを抽出する目的でいくつかのモルフォロジー演算(すなわち膨張)を行う:

C++

 // Threshold to obtain the peaks
 // This will be the markers for the foreground objects
 threshold(dist, dist, 0.4, 1.0, THRESH_BINARY);

 // Dilate a bit the dist image
 Mat kernel1 = Mat::ones(3, 3, CV_8U);
 dilate(dist, dist, kernel1);
 imshow("Peaks", dist);

Java

 // Threshold to obtain the peaks
 // This will be the markers for the foreground objects
        Imgproc.threshold(dist, dist, 0.4, 1.0, Imgproc.THRESH_BINARY);

 // Dilate a bit the dist image
        Mat kernel1 = Mat.ones(3, 3, CvType.CV_8U);
        Imgproc.dilate(dist, dist, kernel1);
        Mat distDisplay2 = new Mat();
        dist.convertTo(distDisplay2, CvType.CV_8U);
        Core.multiply(distDisplay2, new Scalar(255), distDisplay2);
        HighGui.imshow("Peaks", distDisplay2);

Python

_, dist = cv.threshold(dist, 0.4, 1.0, cv.THRESH_BINARY)

# Dilate a bit the dist image
kernel1 = np.ones((3,3), dtype=np.uint8)
dist = cv.dilate(dist, kernel1)
cv.imshow('Peaks', dist)

• 各ブロブから、cv::findContours 関数の助けを借りて、watershedアルゴリズム用のシード/マーカーを作成する:

C++

 // Create the CV_8U version of the distance image
 // It is needed for findContours()
 Mat dist_8u;
    dist.convertTo(dist_8u, CV_8U);

 // Find total markers
    vector<vector<Point> > contours;
 findContours(dist_8u, contours, RETR_EXTERNAL, CHAIN_APPROX_SIMPLE);

 // Create the marker image for the watershed algorithm
 Mat markers = Mat::zeros(dist.size(), CV_32S);

 // Draw the foreground markers
 for (size_t i = 0; i < contours.size(); i++)
    {
 drawContours(markers, contours, static_cast<int>(i), Scalar(static_cast<int>(i)+1), -1);
    }

 // Draw the background marker
 circle(markers, Point(5,5), 3, Scalar(255), -1);
 Mat markers8u;
    markers.convertTo(markers8u, CV_8U, 10);
 imshow("Markers", markers8u);

Java

 // Create the CV_8U version of the distance image
 // It is needed for findContours()
        Mat dist_8u = new Mat();
        dist.convertTo(dist_8u, CvType.CV_8U);

 // Find total markers
        List<MatOfPoint> contours = new ArrayList<>();
        Mat hierarchy = new Mat();
        Imgproc.findContours(dist_8u, contours, hierarchy, Imgproc.RETR_EXTERNAL, Imgproc.CHAIN_APPROX_SIMPLE);

 // Create the marker image for the watershed algorithm
        Mat markers = Mat.zeros(dist.size(), CvType.CV_32S);

 // Draw the foreground markers
 for (int i = 0; i < contours.size(); i++) {
            Imgproc.drawContours(markers, contours, i, new Scalar(i + 1), -1);
        }

 // Draw the background marker
        Mat markersScaled = new Mat();
        markers.convertTo(markersScaled, CvType.CV_32F);
        Core.normalize(markersScaled, markersScaled, 0.0, 255.0, Core.NORM_MINMAX);
        Imgproc.circle(markersScaled, new Point(5, 5), 3, new Scalar(255, 255, 255), -1);
        Mat markersDisplay = new Mat();
        markersScaled.convertTo(markersDisplay, CvType.CV_8U);
        HighGui.imshow("Markers", markersDisplay);
        Imgproc.circle(markers, new Point(5, 5), 3, new Scalar(255, 255, 255), -1);

Python

dist_8u = dist.astype('uint8')

# Find total markers
contours, _ = cv.findContours(dist_8u, cv.RETR_EXTERNAL, cv.CHAIN_APPROX_SIMPLE)

# Create the marker image for the watershed algorithm
markers = np.zeros(dist.shape, dtype=np.int32)

# Draw the foreground markers
for i in range(len(contours)):
 cv.drawContours(markers, contours, i, (i+1), -1)

# Draw the background marker
cv.circle(markers, (5,5), 3, (255,255,255), -1)
markers_8u = (markers * 10).astype('uint8')
cv.imshow('Markers', markers_8u)

• 最後に、watershedアルゴリズムを適用し、結果を可視化する:

C++

 // Perform the watershed algorithm
 watershed(imgResult, markers);

 Mat mark;
    markers.convertTo(mark, CV_8U);
 bitwise_not(mark, mark);
 //    imshow("Markers_v2", mark); // uncomment this if you want to see how the mark
 // image looks like at that point

 // Generate random colors
    vector<Vec3b> colors;
 for (size_t i = 0; i < contours.size(); i++)
    {
 int b = theRNG().uniform(0, 256);
 int g = theRNG().uniform(0, 256);
 int r = theRNG().uniform(0, 256);

        colors.push_back(Vec3b((uchar)b, (uchar)g, (uchar)r));
    }

 // Create the result image
 Mat dst = Mat::zeros(markers.size(), CV_8UC3);

 // Fill labeled objects with random colors
 for (int i = 0; i < markers.rows; i++)
    {
 for (int j = 0; j < markers.cols; j++)
        {
 int index = markers.at<int>(i,j);
 if (index > 0 && index <= static_cast<int>(contours.size()))
            {
                dst.at<Vec3b>(i,j) = colors[index-1];
            }
        }
    }

 // Visualize the final image
 imshow("Final Result", dst);

Java

 // Perform the watershed algorithm
        Imgproc.watershed(imgResult, markers);

        Mat mark = Mat.zeros(markers.size(), CvType.CV_8U);
        markers.convertTo(mark, CvType.CV_8UC1);
        Core.bitwise_not(mark, mark);
 // imshow("Markers_v2", mark); // uncomment this if you want to see how the mark
 // image looks like at that point

 // Generate random colors
        Random rng = new Random(12345);
        List<Scalar> colors = new ArrayList<>(contours.size());
 for (int i = 0; i < contours.size(); i++) {
 int b = rng.nextInt(256);
 int g = rng.nextInt(256);
 int r = rng.nextInt(256);

            colors.add(new Scalar(b, g, r));
        }

 // Create the result image
        Mat dst = Mat.zeros(markers.size(), CvType.CV_8UC3);
 byte[] dstData = new byte[(int) (dst.total() * dst.channels())];
        dst.get(0, 0, dstData);

 // Fill labeled objects with random colors
 int[] markersData = new int[(int) (markers.total() * markers.channels())];
        markers.get(0, 0, markersData);
 for (int i = 0; i < markers.rows(); i++) {
 for (int j = 0; j < markers.cols(); j++) {
 int index = markersData[i * markers.cols() + j];
 if (index > 0 && index <= contours.size()) {
                    dstData[(i * dst.cols() + j) * 3 + 0] = (byte) colors.get(index - 1).val[0];
                    dstData[(i * dst.cols() + j) * 3 + 1] = (byte) colors.get(index - 1).val[1];
                    dstData[(i * dst.cols() + j) * 3 + 2] = (byte) colors.get(index - 1).val[2];
                } else {
                    dstData[(i * dst.cols() + j) * 3 + 0] = 0;
                    dstData[(i * dst.cols() + j) * 3 + 1] = 0;
                    dstData[(i * dst.cols() + j) * 3 + 2] = 0;
                }
            }
        }
        dst.put(0, 0, dstData);

 // Visualize the final image
        HighGui.imshow("Final Result", dst);

Python

cv.watershed(imgResult, markers)

#mark = np.zeros(markers.shape, dtype=np.uint8)
mark = markers.astype('uint8')
mark = cv.bitwise_not(mark)
# uncomment this if you want to see how the mark
# image looks like at that point
#cv.imshow('Markers_v2', mark)

# Generate random colors
colors = []
for contour in contours:
    colors.append((rng.randint(0,256), rng.randint(0,256), rng.randint(0,256)))

# Create the result image
dst = np.zeros((markers.shape[0], markers.shape[1], 3), dtype=np.uint8)

# Fill labeled objects with random colors
for i in range(markers.shape[0]):
 for j in range(markers.shape[1]):
        index = markers[i,j]
 if index > 0 and index <= len(contours):
            dst[i,j,:] = colors[index-1]

# Visualize the final image
cv.imshow('Final Result', dst)
