直線特徴チュートリアル

このチュートリアルでは、以下の方法を示す:

• BinaryDescriptor インターフェイスを使って線分を抽出し、それらを KeyLine オブジェクトに格納する
• 同じインターフェイスを使って、抽出した各線分の記述子を計算する
• BynaryDescriptorMatcher を使って、異なる画像から得られた記述子間のマッチを求める

線分の抽出と記述子の計算

次のコード片では、画像から線分を検出する方法を示す。LSD 抽出器は LSD_REFINE_ADV オプションで初期化され、残りの引数はデフォルト値のままにしている。すべての抽出された線分を受け入れるために、1で埋めたマスクを使用する。最後に、それらをオクターブ0についてランダムな色で表示する。

/*M///////////////////////////////////////////////////////////////////////////////////////
 //
 //  IMPORTANT: READ BEFORE DOWNLOADING, COPYING, INSTALLING OR USING.
 //
 //  By downloading, copying, installing or using the software you agree to this license.
 //  If you do not agree to this license, do not download, install,
 //  copy or use the software.
 //
 //
 //                           License Agreement
 //                For Open Source Computer Vision Library
 //
 // Copyright (C) 2014, Biagio Montesano, all rights reserved.
 // Third party copyrights are property of their respective owners.
 //
 // Redistribution and use in source and binary forms, with or without modification,
 // are permitted provided that the following conditions are met:
 //
 //   * Redistribution's of source code must retain the above copyright notice,
 //     this list of conditions and the following disclaimer.
 //
 //   * Redistribution's in binary form must reproduce the above copyright notice,
 //     this list of conditions and the following disclaimer in the documentation
 //     and/or other materials provided with the distribution.
 //
 //   * The name of the copyright holders may not be used to endorse or promote products
 //     derived from this software without specific prior written permission.
 //
 // This software is provided by the copyright holders and contributors "as is" and
 // any express or implied warranties, including, but not limited to, the implied
 // warranties of merchantability and fitness for a particular purpose are disclaimed.
 // In no event shall the Intel Corporation or contributors be liable for any direct,
 // indirect, incidental, special, exemplary, or consequential damages
 // (including, but not limited to, procurement of substitute goods or services;
 // loss of use, data, or profits; or business interruption) however caused
 // and on any theory of liability, whether in contract, strict liability,
 // or tort (including negligence or otherwise) arising in any way out of
 // the use of this software, even if advised of the possibility of such damage.
 //
 //M*/

#include <iostream>
#include <opencv2/opencv_modules.hpp>

#ifdef HAVE_OPENCV_FEATURES2D

#include <opencv2/line_descriptor.hpp>
#include <opencv2/core/utility.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/features2d.hpp>
#include <opencv2/highgui.hpp>

using namespace cv;
using namespace cv::line_descriptor;
using namespace std;

static const char* keys =
{ "{@image_path | | Image path }" };

static void help()
{
  cout << "\nThis example shows the functionalities of lines extraction " << "furnished by BinaryDescriptor class\n"
       << "Please, run this sample using a command in the form\n" << "./example_line_descriptor_lines_extraction <path_to_input_image>" << endl;
}

int main( int argc, char** argv )
{
 /* get parameters from comand line */
 CommandLineParser parser( argc, argv, keys );
 String image_path = parser.get<String>( 0 );

 if( image_path.empty() )
  {
    help();
 return -1;
  }

 /* load image */
 cv::Mat imageMat = imread( image_path, 1 );
 if( imageMat.data == NULL )
  {
    std::cout << "Error, image could not be loaded. Please, check its path" << std::endl;
 return -1;
  }

 /* create a random binary mask */
 cv::Mat mask = Mat::ones( imageMat.size(), CV_8UC1 );

 /* create a pointer to a BinaryDescriptor object with deafult parameters */
 Ptr<LSDDetector> bd = LSDDetector::createLSDDetector();

 /* create a structure to store extracted lines */
  vector<KeyLine> lines;

 /* extract lines */
 cv::Mat output = imageMat.clone();
  bd->detect( imageMat, lines, 2, 1, mask );

 /* draw lines extracted from octave 0 */
 if( output.channels() == 1 )
 cvtColor( output, output, COLOR_GRAY2BGR );
 for ( size_t i = 0; i < lines.size(); i++ )
  {
 KeyLine kl = lines[i];
 if( kl.octave == 0)
    {
 /* get a random color */
 int R = ( rand() % (int) ( 255 + 1 ) );
 int G = ( rand() % (int) ( 255 + 1 ) );
 int B = ( rand() % (int) ( 255 + 1 ) );

 /* get extremes of line */
 Point pt1 = Point2f( kl.startPointX, kl.startPointY );
 Point pt2 = Point2f( kl.endPointX, kl.endPointY );

 /* draw line */
 line( output, pt1, pt2, Scalar( B, G, R ), 3 );
    }

  }

 /* show lines on image */
 imshow( "LSD lines", output );
 waitKey();
}

#else

int main()
{
    std::cerr << "OpenCV was built without features2d module" << std::endl;
 return 0;
}

#endif // HAVE_OPENCV_FEATURES2D

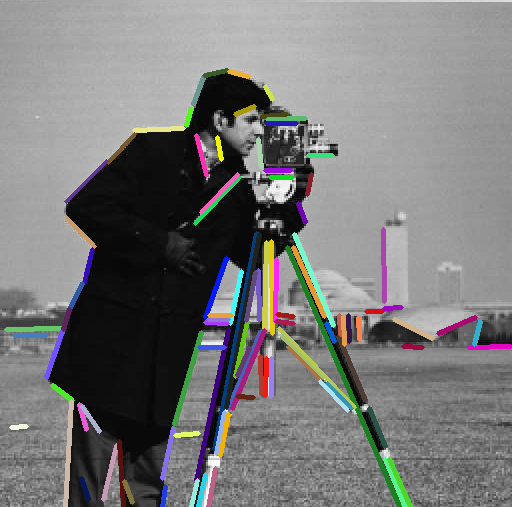

これは有名な cameraman 画像から得られた結果である:

alternate text

線分を抽出するもう一つの方法は LSDDetector クラスを使うことである。このクラスは LSD 抽出器を用いて線分を計算する。この結果を得るには、上で示したコード片を使い、該当する行を変更するだけで十分である

// create a pointer to an LSDDetector object
Ptr<LSDDetector> lsd = LSDDetector::createLSDDetector();

// compute lines
std::vector<KeyLine> keylines;
lsd->detect( imageMat, keylines, mask );

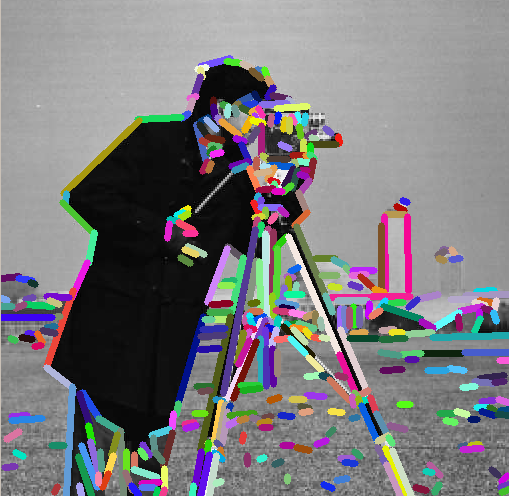

これは再び cameraman 画像に対して LSD 検出器が返した結果である:

alternate text

キーラインが検出されたら、次に示すようにそれらの記述子を計算できる:

/*M///////////////////////////////////////////////////////////////////////////////////////
 //
 //  IMPORTANT: READ BEFORE DOWNLOADING, COPYING, INSTALLING OR USING.
 //
 //  By downloading, copying, installing or using the software you agree to this license.
 //  If you do not agree to this license, do not download, install,
 //  copy or use the software.
 //
 //
 //                           License Agreement
 //                For Open Source Computer Vision Library
 //
 // Copyright (C) 2014, Biagio Montesano, all rights reserved.
 // Third party copyrights are property of their respective owners.
 //
 // Redistribution and use in source and binary forms, with or without modification,
 // are permitted provided that the following conditions are met:
 //
 //   * Redistribution's of source code must retain the above copyright notice,
 //     this list of conditions and the following disclaimer.
 //
 //   * Redistribution's in binary form must reproduce the above copyright notice,
 //     this list of conditions and the following disclaimer in the documentation
 //     and/or other materials provided with the distribution.
 //
 //   * The name of the copyright holders may not be used to endorse or promote products
 //     derived from this software without specific prior written permission.
 //
 // This software is provided by the copyright holders and contributors "as is" and
 // any express or implied warranties, including, but not limited to, the implied
 // warranties of merchantability and fitness for a particular purpose are disclaimed.
 // In no event shall the Intel Corporation or contributors be liable for any direct,
 // indirect, incidental, special, exemplary, or consequential damages
 // (including, but not limited to, procurement of substitute goods or services;
 // loss of use, data, or profits; or business interruption) however caused
 // and on any theory of liability, whether in contract, strict liability,
 // or tort (including negligence or otherwise) arising in any way out of
 // the use of this software, even if advised of the possibility of such damage.
 //
 //M*/

#include <iostream>
#include <opencv2/opencv_modules.hpp>

#ifdef HAVE_OPENCV_FEATURES2D

#include <opencv2/line_descriptor.hpp>
#include <opencv2/core/utility.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/features2d.hpp>
#include <opencv2/highgui.hpp>

using namespace cv;
using namespace cv::line_descriptor;


static const char* keys =
{ "{@image_path | | Image path }" };

static void help()
{
  std::cout << "\nThis example shows the functionalities of lines extraction " << "and descriptors computation furnished by BinaryDescriptor class\n"
            << "Please, run this sample using a command in the form\n" << "./example_line_descriptor_compute_descriptors <path_to_input_image>"
            << std::endl;
}

int main( int argc, char** argv )
{
 /* get parameters from command line */
 CommandLineParser parser( argc, argv, keys );
 String image_path = parser.get<String>( 0 );

 if( image_path.empty() )
  {
    help();
 return -1;
  }

 /* load image */
 cv::Mat imageMat = imread( image_path, 1 );
 if( imageMat.data == NULL )
  {
    std::cout << "Error, image could not be loaded. Please, check its path" << std::endl;
  }

 /* create a binary mask */
 cv::Mat mask = Mat::ones( imageMat.size(), CV_8UC1 );

 /* create a pointer to a BinaryDescriptor object with default parameters */
 Ptr<BinaryDescriptor> bd = BinaryDescriptor::createBinaryDescriptor();

 /* compute lines */
  std::vector<KeyLine> keylines;
  bd->detect( imageMat, keylines, mask );

 /* compute descriptors */
 cv::Mat descriptors;

  bd->compute( imageMat, keylines, descriptors);

}

#else

int main()
{
    std::cerr << "OpenCV was built without features2d module" << std::endl;
 return 0;
}

#endif // HAVE_OPENCV_FEATURES2D

記述子間のマッチング

2つの異なる画像から記述子を抽出した場合、それらの間でマッチを探すことができる。その一つの方法は、各入力クエリ記述子に対して記述子を厳密にマッチさせ、距離が最も近いものを選ぶことである:

/*M///////////////////////////////////////////////////////////////////////////////////////
 //
 //  IMPORTANT: READ BEFORE DOWNLOADING, COPYING, INSTALLING OR USING.
 //
 //  By downloading, copying, installing or using the software you agree to this license.
 //  If you do not agree to this license, do not download, install,
 //  copy or use the software.
 //
 //
 //                           License Agreement
 //                For Open Source Computer Vision Library
 //
 // Copyright (C) 2014, Biagio Montesano, all rights reserved.
 // Third party copyrights are property of their respective owners.
 //
 // Redistribution and use in source and binary forms, with or without modification,
 // are permitted provided that the following conditions are met:
 //
 //   * Redistribution's of source code must retain the above copyright notice,
 //     this list of conditions and the following disclaimer.
 //
 //   * Redistribution's in binary form must reproduce the above copyright notice,
 //     this list of conditions and the following disclaimer in the documentation
 //     and/or other materials provided with the distribution.
 //
 //   * The name of the copyright holders may not be used to endorse or promote products
 //     derived from this software without specific prior written permission.
 //
 // This software is provided by the copyright holders and contributors "as is" and
 // any express or implied warranties, including, but not limited to, the implied
 // warranties of merchantability and fitness for a particular purpose are disclaimed.
 // In no event shall the Intel Corporation or contributors be liable for any direct,
 // indirect, incidental, special, exemplary, or consequential damages
 // (including, but not limited to, procurement of substitute goods or services;
 // loss of use, data, or profits; or business interruption) however caused
 // and on any theory of liability, whether in contract, strict liability,
 // or tort (including negligence or otherwise) arising in any way out of
 // the use of this software, even if advised of the possibility of such damage.
 //
 //M*/

#include <iostream>
#include <opencv2/opencv_modules.hpp>

#ifdef HAVE_OPENCV_FEATURES2D

#include <opencv2/line_descriptor.hpp>
#include <opencv2/core/utility.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/features2d.hpp>
#include <opencv2/highgui.hpp>

#define MATCHES_DIST_THRESHOLD 25

using namespace cv;
using namespace cv::line_descriptor;

static const char* keys =
{ "{@image_path1 | | Image path 1 }"
 "{@image_path2 | | Image path 2 }" };

static void help()
{
  std::cout << "\nThis example shows the functionalities of lines extraction " << "and descriptors computation furnished by BinaryDescriptor class\n"
            << "Please, run this sample using a command in the form\n" << "./example_line_descriptor_compute_descriptors <path_to_input_image 1>"
            << "<path_to_input_image 2>" << std::endl;

}

int main( int argc, char** argv )
{
 /* get parameters from command line */
 CommandLineParser parser( argc, argv, keys );
 String image_path1 = parser.get<String>( 0 );
 String image_path2 = parser.get<String>( 1 );

 if( image_path1.empty() || image_path2.empty() )
  {
    help();
 return -1;
  }

 /* load image */
 cv::Mat imageMat1 = imread( image_path1, 1 );
 cv::Mat imageMat2 = imread( image_path2, 1 );

 if( imageMat1.data == NULL || imageMat2.data == NULL )
  {
    std::cout << "Error, images could not be loaded. Please, check their path" << std::endl;
  }

 /* create binary masks */
 cv::Mat mask1 = Mat::ones( imageMat1.size(), CV_8UC1 );
 cv::Mat mask2 = Mat::ones( imageMat2.size(), CV_8UC1 );

 /* create a pointer to a BinaryDescriptor object with default parameters */
 Ptr<BinaryDescriptor> bd = BinaryDescriptor::createBinaryDescriptor(  );

 /* compute lines and descriptors */
  std::vector<KeyLine> keylines1, keylines2;
 cv::Mat descr1, descr2;

  ( *bd )( imageMat1, mask1, keylines1, descr1, false, false );
  ( *bd )( imageMat2, mask2, keylines2, descr2, false, false );

 /* select keylines from first octave and their descriptors */
  std::vector<KeyLine> lbd_octave1, lbd_octave2;
 Mat left_lbd, right_lbd;
 for ( int i = 0; i < (int) keylines1.size(); i++ )
  {
 if( keylines1[i].octave == 0 )
    {
      lbd_octave1.push_back( keylines1[i] );
      left_lbd.push_back( descr1.row( i ) );
    }
  }

 for ( int j = 0; j < (int) keylines2.size(); j++ )
  {
 if( keylines2[j].octave == 0 )
    {
      lbd_octave2.push_back( keylines2[j] );
      right_lbd.push_back( descr2.row( j ) );
    }
  }

 /* create a BinaryDescriptorMatcher object */
 Ptr<BinaryDescriptorMatcher> bdm = BinaryDescriptorMatcher::createBinaryDescriptorMatcher();

 /* require match */
  std::vector<DMatch> matches;
  bdm->match( left_lbd, right_lbd, matches );

 /* select best matches */
  std::vector<DMatch> good_matches;
 for ( int i = 0; i < (int) matches.size(); i++ )
  {
 if( matches[i].distance < MATCHES_DIST_THRESHOLD )
      good_matches.push_back( matches[i] );
  }

 /* plot matches */
 cv::Mat outImg;
 cv::Mat scaled1, scaled2;
  std::vector<char> mask( matches.size(), 1 );
 drawLineMatches( imageMat1, lbd_octave1, imageMat2, lbd_octave2, good_matches, outImg, Scalar::all( -1 ), Scalar::all( -1 ), mask,
                     DrawLinesMatchesFlags::DEFAULT );

 imshow( "Matches", outImg );
 waitKey();
 imwrite("/home/ubisum/Desktop/images/env_match/matches.jpg", outImg);
 /* create an LSD detector */
 Ptr<LSDDetector> lsd = LSDDetector::createLSDDetector();

 /* detect lines */
  std::vector<KeyLine> klsd1, klsd2;
 Mat lsd_descr1, lsd_descr2;
  lsd->detect( imageMat1, klsd1, 2, 2, mask1 );
  lsd->detect( imageMat2, klsd2, 2, 2, mask2 );

 /* compute descriptors for lines from first octave */
  bd->compute( imageMat1, klsd1, lsd_descr1 );
  bd->compute( imageMat2, klsd2, lsd_descr2 );

 /* select lines and descriptors from first octave */
  std::vector<KeyLine> octave0_1, octave0_2;
 Mat leftDEscr, rightDescr;
 for ( int i = 0; i < (int) klsd1.size(); i++ )
  {
 if( klsd1[i].octave == 1 )
    {
      octave0_1.push_back( klsd1[i] );
      leftDEscr.push_back( lsd_descr1.row( i ) );
    }
  }

 for ( int j = 0; j < (int) klsd2.size(); j++ )
  {
 if( klsd2[j].octave == 1 )
    {
      octave0_2.push_back( klsd2[j] );
      rightDescr.push_back( lsd_descr2.row( j ) );
    }
  }

 /* compute matches */
  std::vector<DMatch> lsd_matches;
  bdm->match( leftDEscr, rightDescr, lsd_matches );

 /* select best matches */
  good_matches.clear();
 for ( int i = 0; i < (int) lsd_matches.size(); i++ )
  {
 if( lsd_matches[i].distance < MATCHES_DIST_THRESHOLD )
      good_matches.push_back( lsd_matches[i] );
  }

 /* plot matches */
 cv::Mat lsd_outImg;
 resize( imageMat1, imageMat1, Size( imageMat1.cols / 2, imageMat1.rows / 2 ), 0, 0, INTER_LINEAR_EXACT );
 resize( imageMat2, imageMat2, Size( imageMat2.cols / 2, imageMat2.rows / 2 ), 0, 0, INTER_LINEAR_EXACT );
  std::vector<char> lsd_mask( matches.size(), 1 );
 drawLineMatches( imageMat1, octave0_1, imageMat2, octave0_2, good_matches, lsd_outImg, Scalar::all( -1 ), Scalar::all( -1 ), lsd_mask,
                   DrawLinesMatchesFlags::DEFAULT );

 imshow( "LSD matches", lsd_outImg );
 waitKey();


}

#else

int main()
{
    std::cerr << "OpenCV was built without features2d module" << std::endl;
 return 0;
}

#endif // HAVE_OPENCV_FEATURES2D

場合によっては、ある入力に対して最も近い k 個の記述子を探したいことがある。これには、前のコードを少し変更する必要がある:

// prepare a structure to host matches
std::vector<std::vector<DMatch> > matches;

// require knn match
bdm->knnMatch( descr1, descr2, matches, 6 );

上の例では、各クエリに対して最も近い6個の記述子が返される。ある場合には、探索半径を設けて、入力クエリから高々 r の距離にあるすべての記述子を探したいことがある。前のコードは次のように変更する必要がある:

// prepare a structure to host matches
std::vector<std::vector<DMatch> > matches;

// compute matches
bdm->radiusMatch( queries, matches, 30 );

これは、元の cameraman 画像と、それをダウンサンプリングした(さらにぼかした)版から抽出した記述子間のマッチングの例である:

alternate text

内部データベースへの問い合わせ

BynaryDescriptorMatcher クラスは、異なる画像から抽出した記述子を格納でき、前節で説明したいずれかの方式で問い合わせられる内部データベースを持つ。内部データセットへの登録は add 関数で行える。この関数は新しいデータを直接データベースに追加するのではなく、ローカルに保持するだけである。実際の更新は train 関数が呼び出されたとき、または任意の問い合わせ関数が実行されたときに起こる。なぜなら、それぞれが問い合わせの前に train を呼び出すからである。問い合わせを受けると、内部データベースは必要な記述子を返すだけでなく、返された各マッチについて、そのマッチした記述子がどの画像から抽出されたかを示すことができる。内部データセットの使用例を次のコードで説明する。ローカルに新しい記述子を追加した後、半径探索を実行する。これによりローカルのデータがデータセットに転送され、そのデータセットが続いて問い合わせられる。

/*M///////////////////////////////////////////////////////////////////////////////////////
 //
 //  IMPORTANT: READ BEFORE DOWNLOADING, COPYING, INSTALLING OR USING.
 //
 //  By downloading, copying, installing or using the software you agree to this license.
 //  If you do not agree to this license, do not download, install,
 //  copy or use the software.
 //
 //
 //                           License Agreement
 //                For Open Source Computer Vision Library
 //
 // Copyright (C) 2014, Biagio Montesano, all rights reserved.
 // Third party copyrights are property of their respective owners.
 //
 // Redistribution and use in source and binary forms, with or without modification,
 // are permitted provided that the following conditions are met:
 //
 //   * Redistribution's of source code must retain the above copyright notice,
 //     this list of conditions and the following disclaimer.
 //
 //   * Redistribution's in binary form must reproduce the above copyright notice,
 //     this list of conditions and the following disclaimer in the documentation
 //     and/or other materials provided with the distribution.
 //
 //   * The name of the copyright holders may not be used to endorse or promote products
 //     derived from this software without specific prior written permission.
 //
 // This software is provided by the copyright holders and contributors "as is" and
 // any express or implied warranties, including, but not limited to, the implied
 // warranties of merchantability and fitness for a particular purpose are disclaimed.
 // In no event shall the Intel Corporation or contributors be liable for any direct,
 // indirect, incidental, special, exemplary, or consequential damages
 // (including, but not limited to, procurement of substitute goods or services;
 // loss of use, data, or profits; or business interruption) however caused
 // and on any theory of liability, whether in contract, strict liability,
 // or tort (including negligence or otherwise) arising in any way out of
 // the use of this software, even if advised of the possibility of such damage.
 //
 //M*/

#include <iostream>
#include <opencv2/opencv_modules.hpp>

#ifdef HAVE_OPENCV_FEATURES2D

#include <opencv2/line_descriptor.hpp>
#include <opencv2/core/utility.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/features2d.hpp>
#include <opencv2/highgui.hpp>

#include <vector>

using namespace cv;
using namespace cv::line_descriptor;

static const std::string images[] =
{ "cameraman.jpg", "church.jpg", "church2.png", "einstein.jpg", "stuff.jpg" };

static const char* keys =
{ "{@image_path | | Image path }" };

static void help()
{
  std::cout << "\nThis example shows the functionalities of radius matching " << "Please, run this sample using a command in the form\n"
      << "./example_line_descriptor_radius_matching <path_to_input_images>/" << std::endl;
}

int main( int argc, char** argv )
{
 /* get parameters from comand line */
 CommandLineParser parser( argc, argv, keys );
 String pathToImages = parser.get < String > ( 0 );

 /* create structures for hosting KeyLines and descriptors */
 int num_elements = sizeof ( images ) / sizeof ( images[0] );
  std::vector < Mat > descriptorsMat;
  std::vector < std::vector<KeyLine> > linesMat;

 /*create a pointer to a BinaryDescriptor object */
  Ptr < BinaryDescriptor > bd = BinaryDescriptor::createBinaryDescriptor();

 /* compute lines and descriptors */
 for ( int i = 0; i < num_elements; i++ )
  {
 /* get path to image */
    std::stringstream image_path;
    image_path << pathToImages << images[i];
    std::cout << image_path.str().c_str() << std::endl;

 /* load image */
 Mat loadedImage = imread( image_path.str().c_str(), 1 );
 if( loadedImage.data == NULL )
    {
      std::cout << "Could not load images." << std::endl;
      help();
      exit( -1 );
    }

 /* compute lines and descriptors */
    std::vector < KeyLine > lines;
 Mat computedDescr;
    bd->detect( loadedImage, lines );
    bd->compute( loadedImage, lines, computedDescr );

    descriptorsMat.push_back( computedDescr );
    linesMat.push_back( lines );

  }

 /* compose a queries matrix */
 Mat queries;
 for ( size_t j = 0; j < descriptorsMat.size(); j++ )
  {
 if( descriptorsMat[j].rows >= 5 )
      queries.push_back( descriptorsMat[j].rowRange( 0, 5 ) );

 else if( descriptorsMat[j].rows > 0 && descriptorsMat[j].rows < 5 )
      queries.push_back( descriptorsMat[j] );
  }

  std::cout << "It has been generated a matrix of " << queries.rows << " descriptors" << std::endl;

 /* create a BinaryDescriptorMatcher object */
  Ptr < BinaryDescriptorMatcher > bdm = BinaryDescriptorMatcher::createBinaryDescriptorMatcher();

 /* populate matcher */
  bdm->add( descriptorsMat );

 /* compute matches */
  std::vector < std::vector<DMatch> > matches;
  bdm->radiusMatch( queries, matches, 30 );
  std::cout << "size matches sample " << matches.size() << std::endl;

 for ( int i = 0; i < (int) matches.size(); i++ )
  {
 for ( int j = 0; j < (int) matches[i].size(); j++ )
    {
      std::cout << "match: " << matches[i][j].queryIdx << " " << matches[i][j].trainIdx << " " << matches[i][j].distance << std::endl;
    }

  }

}

#else

int main()
{
    std::cerr << "OpenCV was built without features2d module" << std::endl;
 return 0;
}

#endif // HAVE_OPENCV_FEATURES2D
