SP_SELECTDEVICE_PARAMS_A

構造体
📘 Microsoft Learn (日本語) · English
サイズx64: 612 バイト / x86: 612 バイト

サイズ=各フィールドのバイト数(x64/x86 で異なる場合は x64/x86 と併記)。x64/x86 列=フィールドのバイトオフセット(HSPで dupptr / lpoke / wpoke 等に使用)。

フィールド

フィールド型サイズx64x86説明
ClassInstallHeaderSP_CLASSINSTALL_HEADER8+0+0クラスインストール要求の共通ヘッダ(SP_CLASSINSTALL_HEADER)。

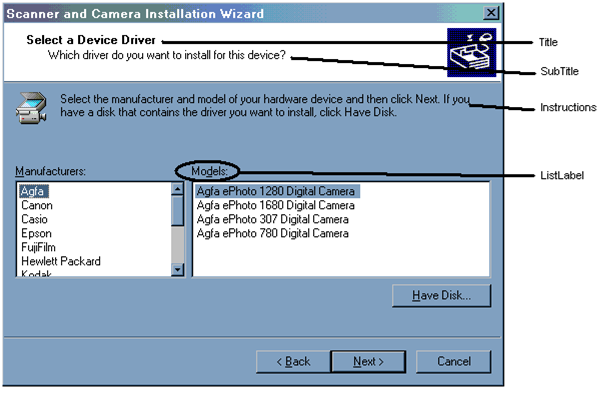

TitleCHAR60+8+8デバイス選択ダイアログのタイトル文字列(ANSI)。
InstructionsCHAR256+68+68ダイアログに表示する説明文(ANSI)。
ListLabelCHAR30+324+324デバイス一覧のラベル文字列(ANSI)。
SubTitleCHAR256+354+354ダイアログのサブタイトル文字列(ANSI)。
ReservedBYTE2+610+610システム内部利用の予約バイト領域。

各言語での定義

#include <windows.h>

// SP_CLASSINSTALL_HEADER  (x64 8 / x86 8 バイト)
typedef struct SP_CLASSINSTALL_HEADER {
    DWORD cbSize;
    DI_FUNCTION InstallFunction;
} SP_CLASSINSTALL_HEADER;

// SP_SELECTDEVICE_PARAMS_A  (x64 612 / x86 612 バイト)
typedef struct SP_SELECTDEVICE_PARAMS_A {
    SP_CLASSINSTALL_HEADER ClassInstallHeader;
    CHAR Title[60];
    CHAR Instructions[256];
    CHAR ListLabel[30];
    CHAR SubTitle[256];
    BYTE Reserved[2];
} SP_SELECTDEVICE_PARAMS_A;
using System;
using System.Runtime.InteropServices;

[StructLayout(LayoutKind.Sequential, CharSet = CharSet.Unicode)]
public struct SP_CLASSINSTALL_HEADER
{
    public uint cbSize;
    public uint InstallFunction;
}

[StructLayout(LayoutKind.Sequential, CharSet = CharSet.Unicode)]
public struct SP_SELECTDEVICE_PARAMS_A
{
    public SP_CLASSINSTALL_HEADER ClassInstallHeader;
    [MarshalAs(UnmanagedType.ByValArray, SizeConst = 60)] public sbyte[] Title;
    [MarshalAs(UnmanagedType.ByValArray, SizeConst = 256)] public sbyte[] Instructions;
    [MarshalAs(UnmanagedType.ByValArray, SizeConst = 30)] public sbyte[] ListLabel;
    [MarshalAs(UnmanagedType.ByValArray, SizeConst = 256)] public sbyte[] SubTitle;
    [MarshalAs(UnmanagedType.ByValArray, SizeConst = 2)] public byte[] Reserved;
}
Imports System.Runtime.InteropServices

<StructLayout(LayoutKind.Sequential, CharSet:=CharSet.Unicode)>
Public Structure SP_CLASSINSTALL_HEADER
    Public cbSize As UInteger
    Public InstallFunction As UInteger
End Structure

<StructLayout(LayoutKind.Sequential, CharSet:=CharSet.Unicode)>
Public Structure SP_SELECTDEVICE_PARAMS_A
    Public ClassInstallHeader As SP_CLASSINSTALL_HEADER
    <MarshalAs(UnmanagedType.ByValArray, SizeConst:=60)> Public Title() As SByte
    <MarshalAs(UnmanagedType.ByValArray, SizeConst:=256)> Public Instructions() As SByte
    <MarshalAs(UnmanagedType.ByValArray, SizeConst:=30)> Public ListLabel() As SByte
    <MarshalAs(UnmanagedType.ByValArray, SizeConst:=256)> Public SubTitle() As SByte
    <MarshalAs(UnmanagedType.ByValArray, SizeConst:=2)> Public Reserved() As Byte
End Structure
import ctypes
from ctypes import wintypes

class SP_CLASSINSTALL_HEADER(ctypes.Structure):
    _fields_ = [
        ("cbSize", wintypes.DWORD),
        ("InstallFunction", wintypes.DWORD),
    ]

class SP_SELECTDEVICE_PARAMS_A(ctypes.Structure):
    _fields_ = [
        ("ClassInstallHeader", SP_CLASSINSTALL_HEADER),
        ("Title", ctypes.c_byte * 60),
        ("Instructions", ctypes.c_byte * 256),
        ("ListLabel", ctypes.c_byte * 30),
        ("SubTitle", ctypes.c_byte * 256),
        ("Reserved", ctypes.c_ubyte * 2),
    ]
#[repr(C)]
pub struct SP_CLASSINSTALL_HEADER {
    pub cbSize: u32,
    pub InstallFunction: u32,
}

#[repr(C)]
pub struct SP_SELECTDEVICE_PARAMS_A {
    pub ClassInstallHeader: SP_CLASSINSTALL_HEADER,
    pub Title: [i8; 60],
    pub Instructions: [i8; 256],
    pub ListLabel: [i8; 30],
    pub SubTitle: [i8; 256],
    pub Reserved: [u8; 2],
}
import "golang.org/x/sys/windows"

type SP_CLASSINSTALL_HEADER struct {
	cbSize uint32
	InstallFunction uint32
}

type SP_SELECTDEVICE_PARAMS_A struct {
	ClassInstallHeader SP_CLASSINSTALL_HEADER
	Title [60]int8
	Instructions [256]int8
	ListLabel [30]int8
	SubTitle [256]int8
	Reserved [2]byte
}
type
  SP_CLASSINSTALL_HEADER = record
    cbSize: DWORD;
    InstallFunction: DWORD;
  end;

  SP_SELECTDEVICE_PARAMS_A = record
    ClassInstallHeader: SP_CLASSINSTALL_HEADER;
    Title: array[0..59] of Shortint;
    Instructions: array[0..255] of Shortint;
    ListLabel: array[0..29] of Shortint;
    SubTitle: array[0..255] of Shortint;
    Reserved: array[0..1] of Byte;
  end;
const SP_CLASSINSTALL_HEADER = extern struct {
    cbSize: u32,
    InstallFunction: u32,
};

const SP_SELECTDEVICE_PARAMS_A = extern struct {
    ClassInstallHeader: SP_CLASSINSTALL_HEADER,
    Title: [60]i8,
    Instructions: [256]i8,
    ListLabel: [30]i8,
    SubTitle: [256]i8,
    Reserved: [2]u8,
};
type
  SP_CLASSINSTALL_HEADER {.bycopy.} = object
    cbSize: uint32
    InstallFunction: uint32

  SP_SELECTDEVICE_PARAMS_A {.bycopy.} = object
    ClassInstallHeader: SP_CLASSINSTALL_HEADER
    Title: array[60, int8]
    Instructions: array[256, int8]
    ListLabel: array[30, int8]
    SubTitle: array[256, int8]
    Reserved: array[2, uint8]
struct SP_CLASSINSTALL_HEADER
{
    uint cbSize;
    uint InstallFunction;
}

struct SP_SELECTDEVICE_PARAMS_A
{
    SP_CLASSINSTALL_HEADER ClassInstallHeader;
    byte[60] Title;
    byte[256] Instructions;
    byte[30] ListLabel;
    byte[256] SubTitle;
    ubyte[2] Reserved;
}

HSP用 定義

HSP3.7/3.8 は構造体機能が無いため4byte整数配列(dim)+peek/poke で操作(32/64bitでサイズ・位置が異なる場合はタブで分割)。IronHSP は NSTRUCT(#defstruct/stdim/->)で32/64bit共通。

; HSP3.7/3.8 は構造体機能が無いため、4byte整数の配列変数で操作します。(x64 レイアウト)
; SP_SELECTDEVICE_PARAMS_A サイズ: 612 バイト(x64)
dim st, 153    ; 4byte整数×153(構造体サイズ 612 / 4 切り上げ)
; ClassInstallHeader : SP_CLASSINSTALL_HEADER (+0, 8byte)  varptr(st)+0 を基点に操作(8byte:入れ子/配列)
; Title : CHAR (+8, 60byte)  varptr(st)+8 を基点に操作(60byte:入れ子/配列)
; Instructions : CHAR (+68, 256byte)  varptr(st)+68 を基点に操作(256byte:入れ子/配列)
; ListLabel : CHAR (+324, 30byte)  varptr(st)+324 を基点に操作(30byte:入れ子/配列)
; SubTitle : CHAR (+354, 256byte)  varptr(st)+354 を基点に操作(256byte:入れ子/配列)
; Reserved : BYTE (+610, 2byte)  varptr(st)+610 を基点に操作(2byte:入れ子/配列)
; ※4byte境界の整数は添字 st.N(N=オフセット/4)で読み書き可。それ以外は peek/poke 系を使用。
; IronHSP は NSTRUCT(構造体)をサポート。32bit/64bit どちらでも同じコードで動作します。
; ※GUID・入れ子構造体はデフォルト型でないため、依存する #defstruct を先に定義(下記に同梱)。
#defstruct global SP_CLASSINSTALL_HEADER
    #field int cbSize
    #field int InstallFunction
#endstruct

#defstruct global SP_SELECTDEVICE_PARAMS_A
    #field SP_CLASSINSTALL_HEADER ClassInstallHeader
    #field byte Title 60
    #field byte Instructions 256
    #field byte ListLabel 30
    #field byte SubTitle 256
    #field byte Reserved 2
#endstruct

stdim st, SP_SELECTDEVICE_PARAMS_A        ; NSTRUCT 変数を確保
