目標

このチュートリアルでは、以下の方法を学ぶ:

cv::findHomography 関数を使って、マッチしたキーポイント間の変換を求める。
cv::perspectiveTransform 関数を使って、点をマッピングする。

警告: SURF特徴を使用するには OpenCV contribモジュールが必要である(代替としてORB、KAZEなどの特徴がある)。

理論

コード

このチュートリアルのコードを以下に示す。こちらからダウンロードすることもできる。

#include <iostream>
#include "opencv2/core.hpp"
#ifdef HAVE_OPENCV_XFEATURES2D
#include "opencv2/calib3d.hpp"
#include "opencv2/highgui.hpp"
#include "opencv2/imgproc.hpp"
#include "opencv2/features2d.hpp"
#include "opencv2/xfeatures2d.hpp"

using namespace cv;
using namespace cv::xfeatures2d;
using std::cout;
using std::endl;

const char* keys =
 "{ help h |                  | Print help message. }"
 "{ input1 | box.png          | Path to input image 1. }"
 "{ input2 | box_in_scene.png | Path to input image 2. }";

int main( int argc, char* argv[] )
{
 CommandLineParser parser( argc, argv, keys );
 Mat img_object = imread( samples::findFile( parser.get<String>("input1") ), IMREAD_GRAYSCALE );
 Mat img_scene = imread( samples::findFile( parser.get<String>("input2") ), IMREAD_GRAYSCALE );
 if ( img_object.empty() || img_scene.empty() )
    {
        cout << "Could not open or find the image!\n" << endl;
        parser.printMessage();
 return -1;
    }

 //-- Step 1: Detect the keypoints using SURF Detector, compute the descriptors
 int minHessian = 400;
 Ptr<SURF> detector = SURF::create( minHessian );
    std::vector<KeyPoint> keypoints_object, keypoints_scene;
 Mat descriptors_object, descriptors_scene;
    detector->detectAndCompute( img_object, noArray(), keypoints_object, descriptors_object );
    detector->detectAndCompute( img_scene, noArray(), keypoints_scene, descriptors_scene );

 //-- Step 2: Matching descriptor vectors with a FLANN based matcher
 // Since SURF is a floating-point descriptor NORM_L2 is used
 Ptr<DescriptorMatcher> matcher = DescriptorMatcher::create(DescriptorMatcher::FLANNBASED);
    std::vector< std::vector<DMatch> > knn_matches;
    matcher->knnMatch( descriptors_object, descriptors_scene, knn_matches, 2 );

 //-- Filter matches using the Lowe's ratio test
 const float ratio_thresh = 0.75f;
    std::vector<DMatch> good_matches;
 for (size_t i = 0; i < knn_matches.size(); i++)
    {
 if (knn_matches[i][0].distance < ratio_thresh * knn_matches[i][1].distance)
        {
            good_matches.push_back(knn_matches[i][0]);
        }
    }

 //-- Draw matches
 Mat img_matches;
    drawMatches( img_object, keypoints_object, img_scene, keypoints_scene, good_matches, img_matches, Scalar::all(-1),
                 Scalar::all(-1), std::vector<char>(), DrawMatchesFlags::NOT_DRAW_SINGLE_POINTS );

 //-- Localize the object
    std::vector<Point2f> obj;
    std::vector<Point2f> scene;

 for( size_t i = 0; i < good_matches.size(); i++ )
    {
 //-- Get the keypoints from the good matches
        obj.push_back( keypoints_object[ good_matches[i].queryIdx ].pt );
        scene.push_back( keypoints_scene[ good_matches[i].trainIdx ].pt );
    }

 Mat H = findHomography( obj, scene, RANSAC );

 //-- Get the corners from the image_1 ( the object to be "detected" )
    std::vector<Point2f> obj_corners(4);
    obj_corners[0] = Point2f(0, 0);
    obj_corners[1] = Point2f( (float)img_object.cols, 0 );
    obj_corners[2] = Point2f( (float)img_object.cols, (float)img_object.rows );
    obj_corners[3] = Point2f( 0, (float)img_object.rows );
    std::vector<Point2f> scene_corners(4);

 perspectiveTransform( obj_corners, scene_corners, H);

 //-- Draw lines between the corners (the mapped object in the scene - image_2 )
 line( img_matches, scene_corners[0] + Point2f((float)img_object.cols, 0),
          scene_corners[1] + Point2f((float)img_object.cols, 0), Scalar(0, 255, 0), 4 );
 line( img_matches, scene_corners[1] + Point2f((float)img_object.cols, 0),
          scene_corners[2] + Point2f((float)img_object.cols, 0), Scalar( 0, 255, 0), 4 );
 line( img_matches, scene_corners[2] + Point2f((float)img_object.cols, 0),
          scene_corners[3] + Point2f((float)img_object.cols, 0), Scalar( 0, 255, 0), 4 );
 line( img_matches, scene_corners[3] + Point2f((float)img_object.cols, 0),
          scene_corners[0] + Point2f((float)img_object.cols, 0), Scalar( 0, 255, 0), 4 );

 //-- Show detected matches

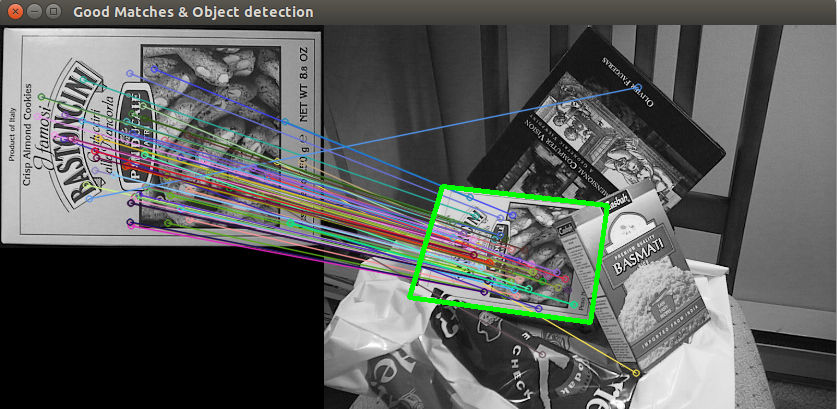

 imshow("Good Matches & Object detection", img_matches );

 waitKey();
 return 0;
}
#else
int main()
{
    std::cout << "This tutorial code needs the xfeatures2d contrib module to be run." << std::endl;
 return 0;
}
#endif

このチュートリアルのコードを以下に示す。ここからダウンロードすることもできる。

import java.util.ArrayList;
import java.util.List;

import org.opencv.calib3d.Calib3d;
import org.opencv.core.Core;
import org.opencv.core.CvType;
import org.opencv.core.DMatch;
import org.opencv.core.KeyPoint;
import org.opencv.core.Mat;
import org.opencv.core.MatOfByte;
import org.opencv.core.MatOfDMatch;
import org.opencv.core.MatOfKeyPoint;
import org.opencv.core.MatOfPoint2f;
import org.opencv.core.Point;
import org.opencv.core.Scalar;
import org.opencv.features2d.DescriptorMatcher;
import org.opencv.features2d.Features2d;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;
import org.opencv.xfeatures2d.SURF;

class SURFFLANNMatchingHomography {
 public void run(String[] args) {
        String filenameObject = args.length > 1 ? args[0] : "../data/box.png";
        String filenameScene = args.length > 1 ? args[1] : "../data/box_in_scene.png";
        Mat imgObject = Imgcodecs.imread(filenameObject, Imgcodecs.IMREAD_GRAYSCALE);
        Mat imgScene = Imgcodecs.imread(filenameScene, Imgcodecs.IMREAD_GRAYSCALE);
 if (imgObject.empty() || imgScene.empty()) {
            System.err.println("Cannot read images!");
            System.exit(0);
        }

 //-- Step 1: Detect the keypoints using SURF Detector, compute the descriptors
 double hessianThreshold = 400;
 int nOctaves = 4, nOctaveLayers = 3;
 boolean extended = false, upright = false;
        SURF detector = SURF.create(hessianThreshold, nOctaves, nOctaveLayers, extended, upright);
        MatOfKeyPoint keypointsObject = new MatOfKeyPoint(), keypointsScene = new MatOfKeyPoint();
        Mat descriptorsObject = new Mat(), descriptorsScene = new Mat();
        detector.detectAndCompute(imgObject, new Mat(), keypointsObject, descriptorsObject);
        detector.detectAndCompute(imgScene, new Mat(), keypointsScene, descriptorsScene);

 //-- Step 2: Matching descriptor vectors with a FLANN based matcher
 // Since SURF is a floating-point descriptor NORM_L2 is used
        DescriptorMatcher matcher = DescriptorMatcher.create(DescriptorMatcher.FLANNBASED);
        List<MatOfDMatch> knnMatches = new ArrayList<>();
        matcher.knnMatch(descriptorsObject, descriptorsScene, knnMatches, 2);

 //-- Filter matches using the Lowe's ratio test
 float ratioThresh = 0.75f;
        List<DMatch> listOfGoodMatches = new ArrayList<>();
 for (int i = 0; i < knnMatches.size(); i++) {
 if (knnMatches.get(i).rows() > 1) {
                DMatch[] matches = knnMatches.get(i).toArray();
 if (matches[0].distance < ratioThresh * matches[1].distance) {
                    listOfGoodMatches.add(matches[0]);
                }
            }
        }
        MatOfDMatch goodMatches = new MatOfDMatch();
        goodMatches.fromList(listOfGoodMatches);

 //-- Draw matches
        Mat imgMatches = new Mat();
        Features2d.drawMatches(imgObject, keypointsObject, imgScene, keypointsScene, goodMatches, imgMatches, Scalar.all(-1),
 Scalar.all(-1), new MatOfByte(), Features2d.DrawMatchesFlags_NOT_DRAW_SINGLE_POINTS);

 //-- Localize the object
        List<Point> obj = new ArrayList<>();
        List<Point> scene = new ArrayList<>();

        List<KeyPoint> listOfKeypointsObject = keypointsObject.toList();
        List<KeyPoint> listOfKeypointsScene = keypointsScene.toList();
 for (int i = 0; i < listOfGoodMatches.size(); i++) {
 //-- Get the keypoints from the good matches
            obj.add(listOfKeypointsObject.get(listOfGoodMatches.get(i).queryIdx).pt);
            scene.add(listOfKeypointsScene.get(listOfGoodMatches.get(i).trainIdx).pt);
        }

        MatOfPoint2f objMat = new MatOfPoint2f(), sceneMat = new MatOfPoint2f();
        objMat.fromList(obj);
        sceneMat.fromList(scene);
 double ransacReprojThreshold = 3.0;
        Mat H = Calib3d.findHomography( objMat, sceneMat, Calib3d.RANSAC, ransacReprojThreshold );

 //-- Get the corners from the image_1 ( the object to be "detected" )
        Mat objCorners = new Mat(4, 1, CvType.CV_32FC2), sceneCorners = new Mat();
 float[] objCornersData = new float[(int) (objCorners.total() * objCorners.channels())];
        objCorners.get(0, 0, objCornersData);
        objCornersData[0] = 0;
        objCornersData[1] = 0;
        objCornersData[2] = imgObject.cols();
        objCornersData[3] = 0;
        objCornersData[4] = imgObject.cols();
        objCornersData[5] = imgObject.rows();
        objCornersData[6] = 0;
        objCornersData[7] = imgObject.rows();
        objCorners.put(0, 0, objCornersData);

        Core.perspectiveTransform(objCorners, sceneCorners, H);
 float[] sceneCornersData = new float[(int) (sceneCorners.total() * sceneCorners.channels())];
        sceneCorners.get(0, 0, sceneCornersData);

 //-- Draw lines between the corners (the mapped object in the scene - image_2 )
        Imgproc.line(imgMatches, new Point(sceneCornersData[0] + imgObject.cols(), sceneCornersData[1]),
 new Point(sceneCornersData[2] + imgObject.cols(), sceneCornersData[3]), new Scalar(0, 255, 0), 4);
        Imgproc.line(imgMatches, new Point(sceneCornersData[2] + imgObject.cols(), sceneCornersData[3]),
 new Point(sceneCornersData[4] + imgObject.cols(), sceneCornersData[5]), new Scalar(0, 255, 0), 4);
        Imgproc.line(imgMatches, new Point(sceneCornersData[4] + imgObject.cols(), sceneCornersData[5]),
 new Point(sceneCornersData[6] + imgObject.cols(), sceneCornersData[7]), new Scalar(0, 255, 0), 4);
        Imgproc.line(imgMatches, new Point(sceneCornersData[6] + imgObject.cols(), sceneCornersData[7]),
 new Point(sceneCornersData[0] + imgObject.cols(), sceneCornersData[1]), new Scalar(0, 255, 0), 4);

 //-- Show detected matches
        HighGui.imshow("Good Matches & Object detection", imgMatches);
        HighGui.waitKey(0);

        System.exit(0);
    }
}

public class SURFFLANNMatchingHomographyDemo {
 public static void main(String[] args) {
 // Load the native OpenCV library
        System.loadLibrary(Core.NATIVE_LIBRARY_NAME);

 new SURFFLANNMatchingHomography().run(args);
    }
}

このチュートリアルのコードを以下に示す。ここからダウンロードすることもできる。

from __future__ import print_function
import cv2 as cv
import numpy as np
import argparse

parser = argparse.ArgumentParser(description='Code for Feature Matching with FLANN tutorial.')
parser.add_argument('--input1', help='Path to input image 1.', default='box.png')
parser.add_argument('--input2', help='Path to input image 2.', default='box_in_scene.png')
args = parser.parse_args()

img_object = cv.imread(cv.samples.findFile(args.input1), cv.IMREAD_GRAYSCALE)
img_scene = cv.imread(cv.samples.findFile(args.input2), cv.IMREAD_GRAYSCALE)
if img_object is None or img_scene is None:
    print('Could not open or find the images!')
    exit(0)

#-- Step 1: Detect the keypoints using SURF Detector, compute the descriptors
minHessian = 400
detector = cv.xfeatures2d_SURF.create(hessianThreshold=minHessian)
keypoints_obj, descriptors_obj = detector.detectAndCompute(img_object, None)
keypoints_scene, descriptors_scene = detector.detectAndCompute(img_scene, None)

#-- Step 2: Matching descriptor vectors with a FLANN based matcher
# Since SURF is a floating-point descriptor NORM_L2 is used
matcher = cv.DescriptorMatcher_create(cv.DescriptorMatcher_FLANNBASED)
knn_matches = matcher.knnMatch(descriptors_obj, descriptors_scene, 2)

#-- Filter matches using the Lowe's ratio test
ratio_thresh = 0.75
good_matches = []
for m,n in knn_matches:
 if m.distance < ratio_thresh * n.distance:
        good_matches.append(m)

#-- Draw matches
img_matches = np.empty((max(img_object.shape[0], img_scene.shape[0]), img_object.shape[1]+img_scene.shape[1], 3), dtype=np.uint8)
cv.drawMatches(img_object, keypoints_obj, img_scene, keypoints_scene, good_matches, img_matches, flags=cv.DrawMatchesFlags_NOT_DRAW_SINGLE_POINTS)

#-- Localize the object
obj = np.empty((len(good_matches),2), dtype=np.float32)
scene = np.empty((len(good_matches),2), dtype=np.float32)
for i in range(len(good_matches)):
 #-- Get the keypoints from the good matches
    obj[i,0] = keypoints_obj[good_matches[i].queryIdx].pt[0]
    obj[i,1] = keypoints_obj[good_matches[i].queryIdx].pt[1]
    scene[i,0] = keypoints_scene[good_matches[i].trainIdx].pt[0]
    scene[i,1] = keypoints_scene[good_matches[i].trainIdx].pt[1]

H, _ =  cv.findHomography(obj, scene, cv.RANSAC)

#-- Get the corners from the image_1 ( the object to be "detected" )
obj_corners = np.empty((4,1,2), dtype=np.float32)
obj_corners[0,0,0] = 0
obj_corners[0,0,1] = 0
obj_corners[1,0,0] = img_object.shape[1]
obj_corners[1,0,1] = 0
obj_corners[2,0,0] = img_object.shape[1]
obj_corners[2,0,1] = img_object.shape[0]
obj_corners[3,0,0] = 0
obj_corners[3,0,1] = img_object.shape[0]

scene_corners = cv.perspectiveTransform(obj_corners, H)

#-- Draw lines between the corners (the mapped object in the scene - image_2 )
cv.line(img_matches, (int(scene_corners[0,0,0] + img_object.shape[1]), int(scene_corners[0,0,1])),\
    (int(scene_corners[1,0,0] + img_object.shape[1]), int(scene_corners[1,0,1])), (0,255,0), 4)
cv.line(img_matches, (int(scene_corners[1,0,0] + img_object.shape[1]), int(scene_corners[1,0,1])),\
    (int(scene_corners[2,0,0] + img_object.shape[1]), int(scene_corners[2,0,1])), (0,255,0), 4)
cv.line(img_matches, (int(scene_corners[2,0,0] + img_object.shape[1]), int(scene_corners[2,0,1])),\
    (int(scene_corners[3,0,0] + img_object.shape[1]), int(scene_corners[3,0,1])), (0,255,0), 4)
cv.line(img_matches, (int(scene_corners[3,0,0] + img_object.shape[1]), int(scene_corners[3,0,1])),\
    (int(scene_corners[0,0,0] + img_object.shape[1]), int(scene_corners[0,0,1])), (0,255,0), 4)

#-- Show detected matches
cv.imshow('Good Matches & Object detection', img_matches)

cv.waitKey()

解説

結果

そして以下が検出されたオブジェクト（緑色で強調表示）の結果である。ホモグラフィはRANSACアプローチで推定されるため、検出された誤ったマッチングはホモグラフィの計算に影響を与えないことに注意する。


原著者	Ana Huamán
互換性	OpenCV >= 3.0

目次

目標

理論

コード

解説

結果
